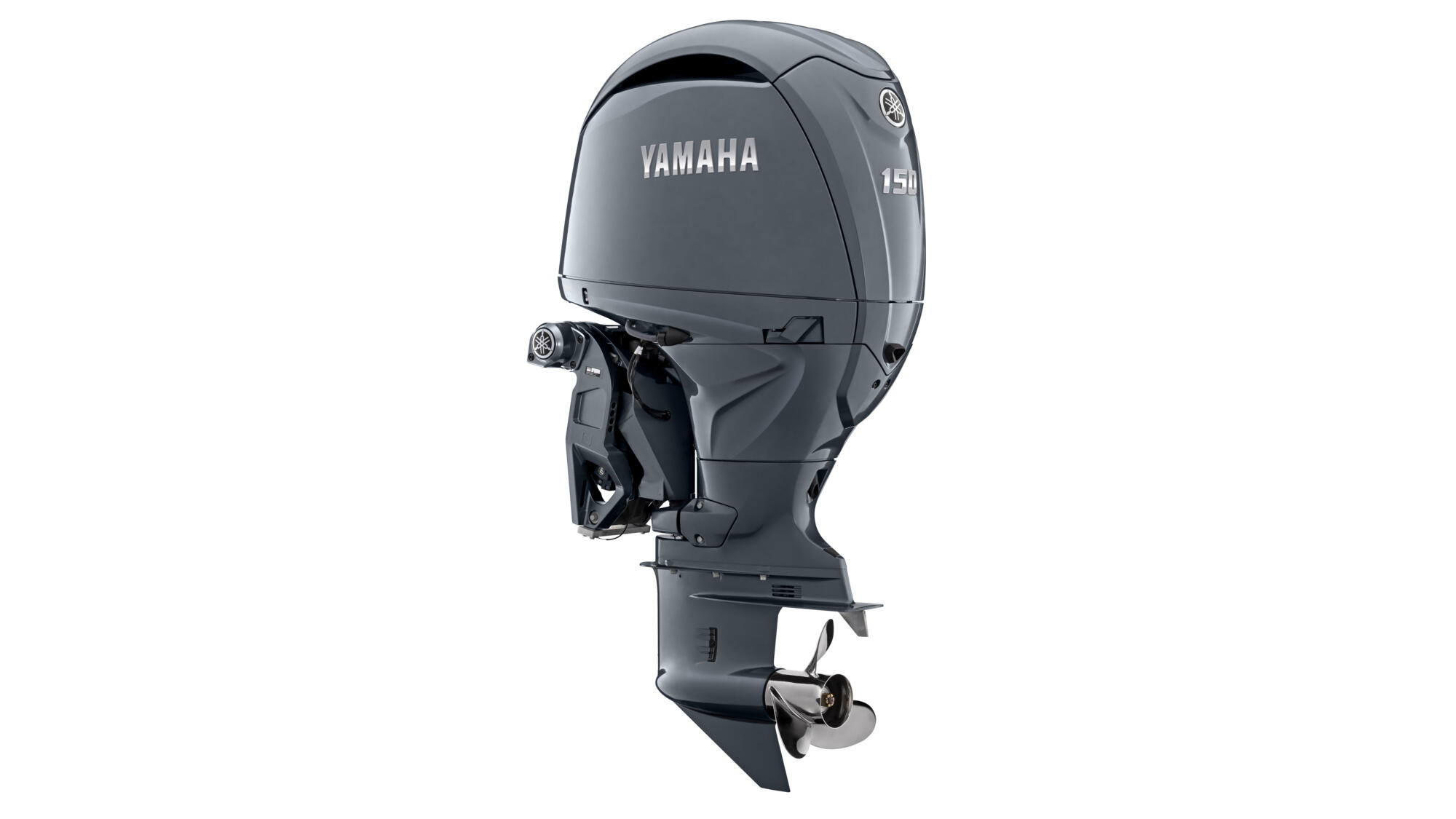

Yamaha 150hp
Χαρακτηριστικά
|
Engine type |
16-Valve, DOHC, In-line 4 cylinders |
|
Displacement |
2670 cm³ |
|
Bore x stroke |
94.0 × 96.2 mm |
|
Compression ratio |
9.0 : 1 |
|
Fuel induction system |
Fuel injection |
|
Lubrication system |
Wet sump |
|
Engine oil capacity |
4.5 L/ 4.3 L (with / without oil filter replacement) |
|
Ignition / advance system |
TCI |
|
Alternator |
35 A (Charging capacity: 21 A) |
|
Overall length |
963 mm |
|
Overall width |
548 mm |
|
Overall height |
L: 1742 mm, X: 1869 mm |
|
Engine transom height |
L: 516 mm, X: 642 mm |
|
Steering angle |
32 degrees each direction |
|
Dry weight |
237 kg – 243 kg |
|
Maximum propeller shaft output |
110.3 kW |
|
Full throttle operating range |
5000 – 6000 r/min |
|
Idling speed |
650 – 750 r/min |
|
Shallow water drive |
PTT: variable position |
|
Gear shift |
F-N-R |
|
Gear ratio |
2.00 (28/14) |
|
Gear oil capacity |
0.980 L |
